PRODUCT DESCRIPTION

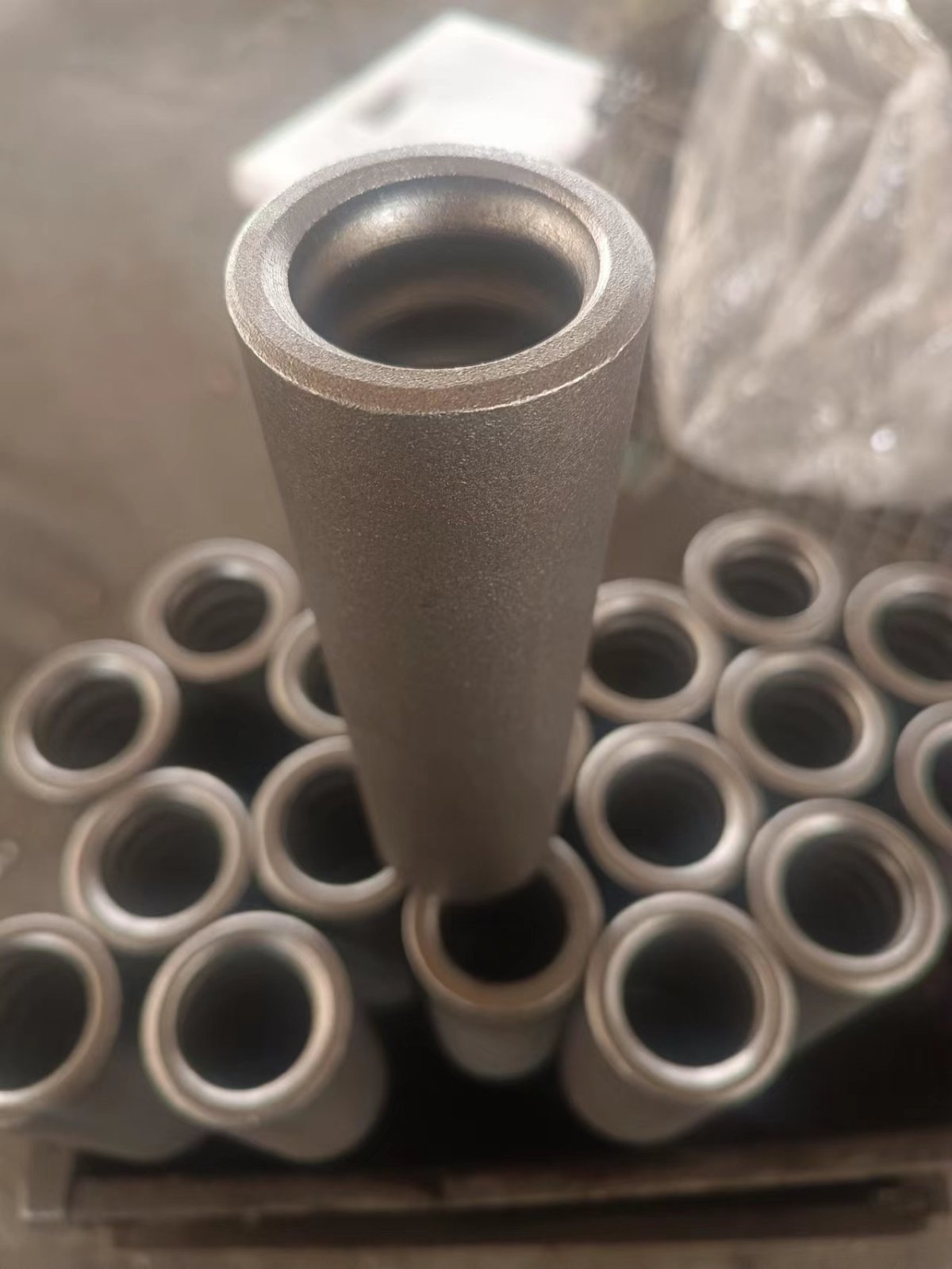

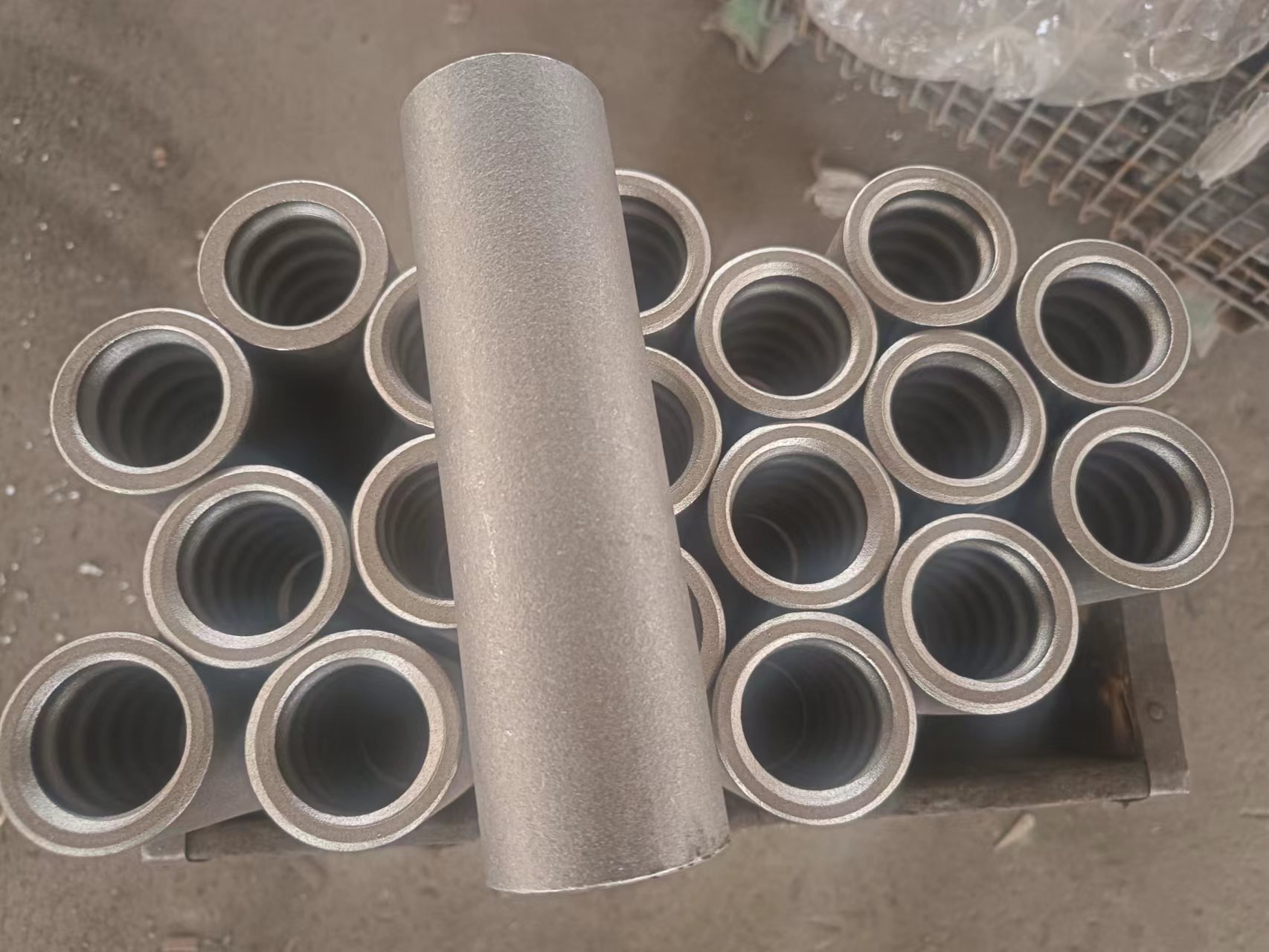

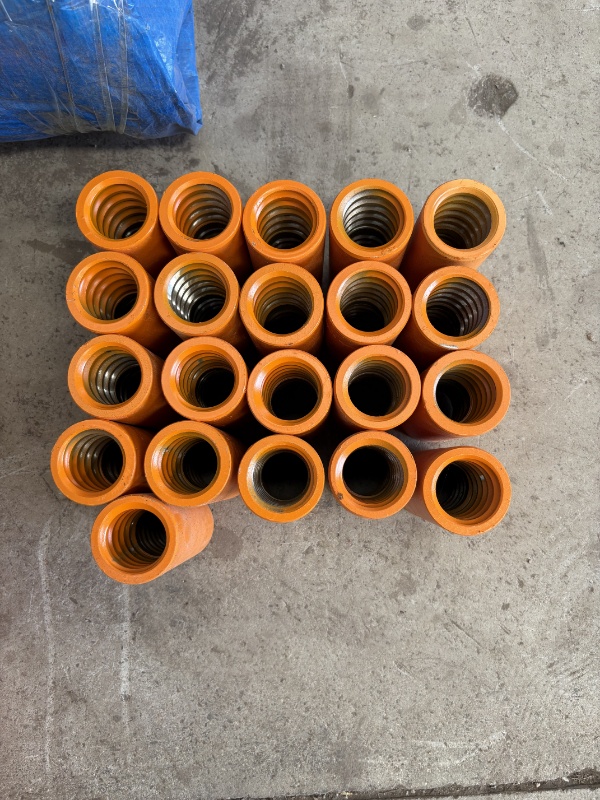

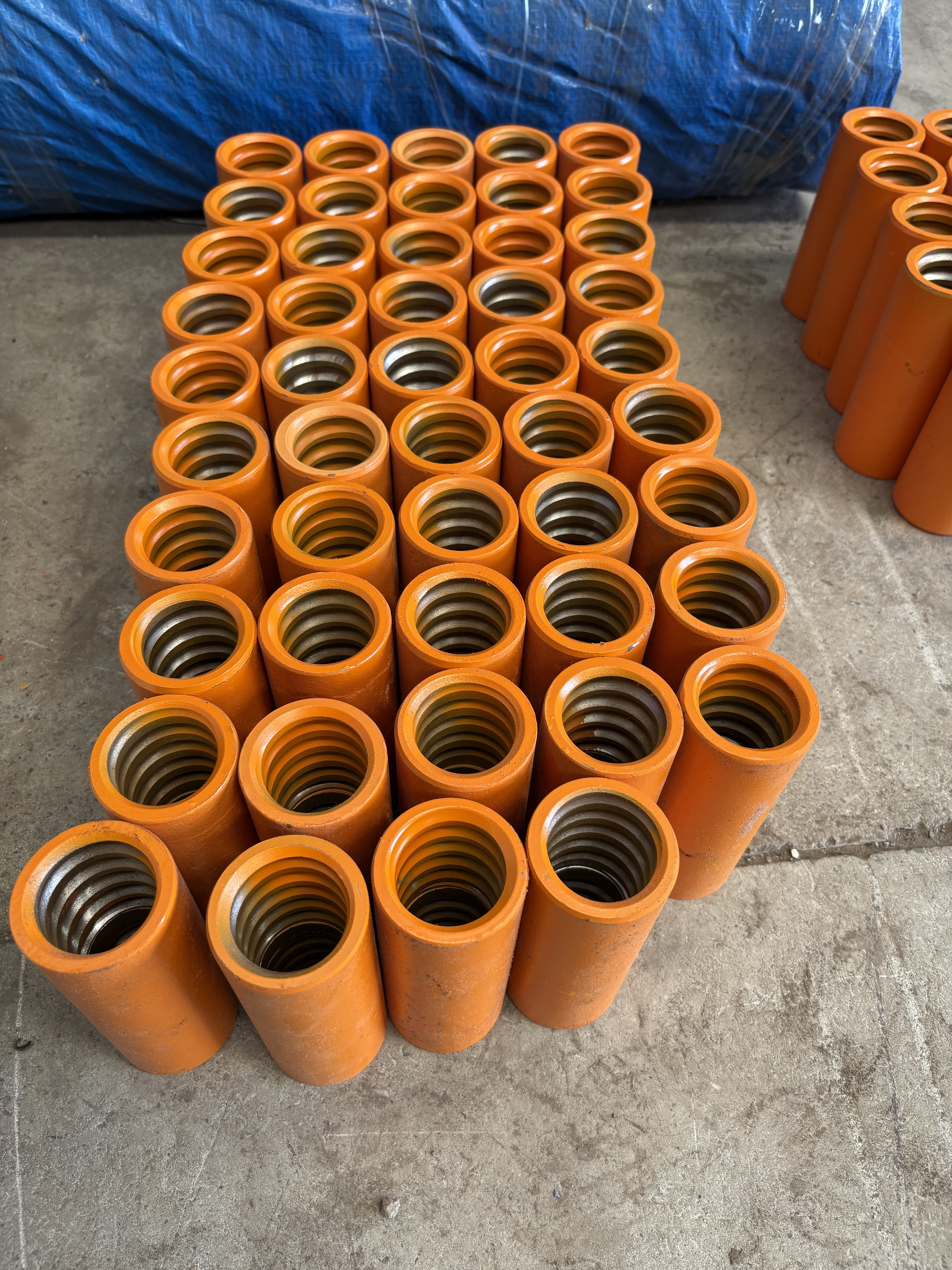

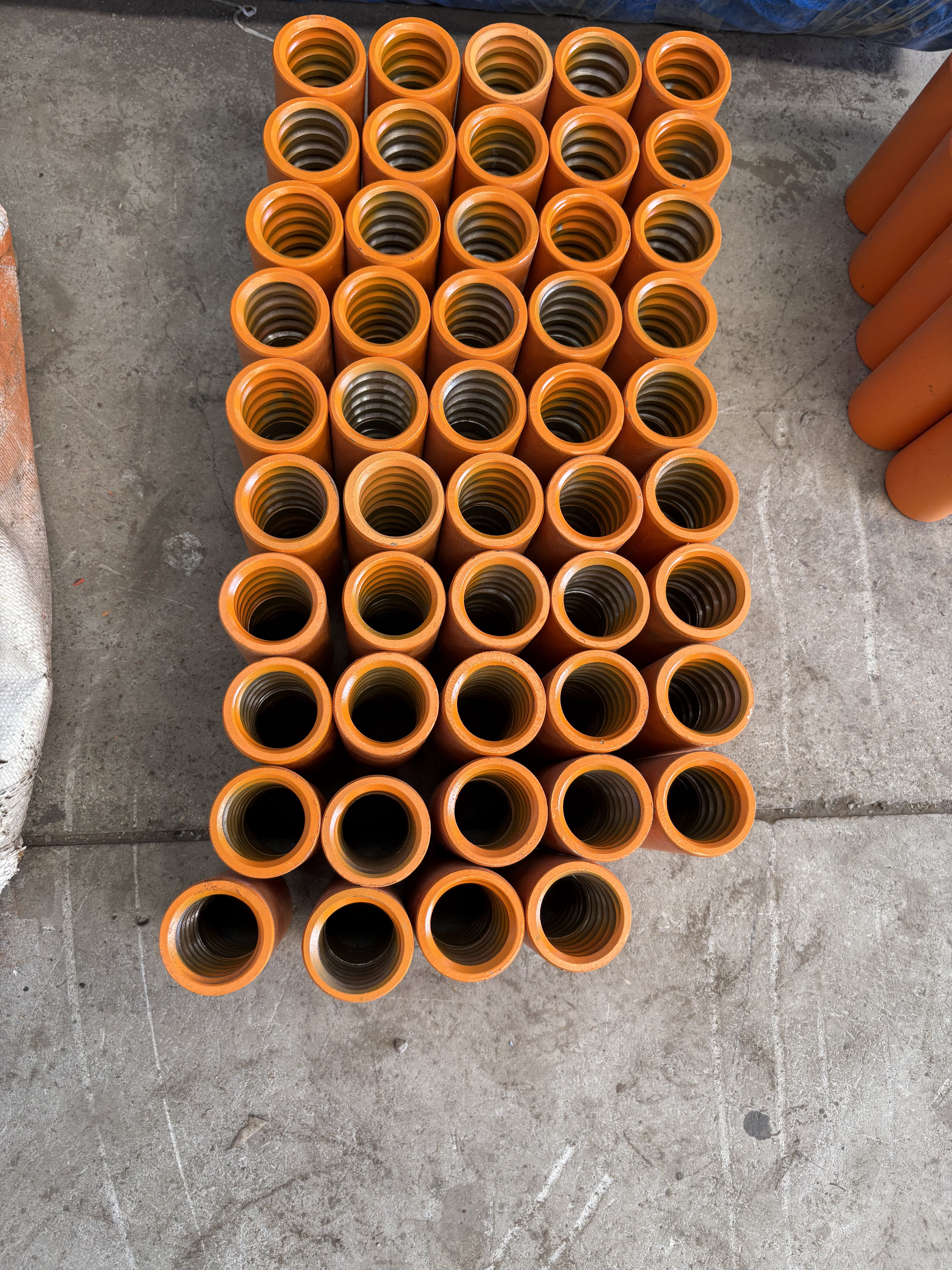

Self drilling anchor coupler





Self drilling anchor coupler



Anchor Coupling

R32L/22R32N/20R32N/18.5R32S/17R32S/15R32S/14
Outside Diameter (mm)42
 Length (mm )145160160190190220
Thread typeISO 10208 - R32 / Left or Right

40Cr / Q355B / 20Cr /C45
Unit Weight (kg)0.72 0.80 0.80 0.96 0.96 1.10
 Hardness HRC 20-30
Options of Anti-corrosion  Hot-dipped Galvanization  /  Epoxy Coating
Hot-dipped Galvanization: ISO 1461.
Epoxy Coating: Bending properties up to  standard ISO 1519; Impact properties up to standard ASTMD 2794; Adhesion up to standard ISO 2409:2007.




Anchor Coupling

R38N/21R38N/19 R38/550 R38/600 R38/660
Outside Diameter (mm)5252525252
 Length (mm )220220250280300
Thread type    ISO10208 - R38 / Left or Right
Type of steel40Cr
Unit Weight (kg)1.80 1.80 2.05 2.28 2.45
 Hardness HRC 20-30
Options of Anti-corrosion    Hot-dipped Galvanization  /  Epoxy Coating
    *Hot-dipped Galvanization: ISO 1461.
    *Epoxy Coating: Bending properties up to  standard ISO 1519;Impact properties up to standard ASTMD 2794; Adhesion up to standard ISO 2409:2007.



Anchor Coupling

R51L/36R51L/34 R51N/33 R51N/31 R51/950R51/660
Outside Diameter (mm)63
 Length (mm )140140200200260180
Thread typeISO 1720 - R51 / Left or Right
Type of steel40Cr
Unit Weight (kg)1.26 1.26 1.90 1.90 2.46 1.68
 Hardness HRC 20-30
Options of Anti-corrosion  Hot-dipped Galvanization  /  Epoxy Coating
Hot-dipped Galvanization: ISO 1461.
Epoxy Coating: Bending properties up to  standard ISO 1519; Impact properties up to standard ASTMD 2794; Adhesion up to standard ISO 2409:2007.


Anchor Coupling

      T30/16  T30/14T30/11
Outside Diameter (mm)38
 Length (mm )105
Thread type         T30 International Standard / Left or Right
Type of steel40Cr / Q355B
Unit Weight (kg)0.42
  Hardness (HRC) HRC 20-30
Options of Anti-corrosion  Hot-dipped Galvanization  /  Epoxy Coating
    *Hot-dipped Galvanization: ISO 1461.
    *Epoxy Coating: Bending properties up to  standard ISO 1519; Impact   properties up to standard ASTMD 2794; Adhesion up to standard ISO 2409:2007.



Anchor Coupling

  T40/20     T40/16
Outside Diameter (mm)5457
 Length (mm )140
Thread type    T40 International Standard / Left or Right
Type of steel  40Cr / Q355B
Unit Weight (kg)1.15 1.54
 Hardness HRC 20-30
Options of Anti-corrosion  Hot-dipped Galvanization  /  Epoxy Coating
    *Hot-dipped Galvanization: ISO 1461.
    *Epoxy Coating: Bending properties up to  standard ISO 1519; Impact   properties up to standard ASTMD 2794; Adhesion up to standard ISO 2409:2007.



Anchor Coupling

    T52/26
Outside Diameter (mm)70
 Length (mm )160
Thread type   T52 International Standard / Left or Right
Type of steel Q355B / 40Cr
Unit Weight (kg)2.30
 Hardness HRC 20-30
Options of Anti-corrosion  Hot-dipped Galvanization  /  Epoxy Coating
    *Hot-dipped Galvanization: ISO 1461.
    *Epoxy Coating: Bending properties up to  standard ISO 1519; Impact   properties up to standard ASTMD 2794; Adhesion up to standard ISO 2409:2007.




Anchor Coupling

     T73/53 T73/56      T73/45T73/35
Outside Diameter (mm)89899595
 Length (mm )235235245245
Thread type T73 International Standard / Continuously right hand threaded
Type of steel Q355B / 40Cr / C45
Unit Weight (kg)4.30 4.30 6.20 6.20
  Hardness (HRC) HRC 20-30
Options of Anti-corrosion  Hot-dipped Galvanization  /  Epoxy Coating
    *Hot-dipped Galvanization: ISO 1461.
    *Epoxy Coating: Bending properties up to  standard ISO 1519; Impact   properties up to standard ASTMD 2794; Adhesion up to standard ISO 2409:2007.




Anchor Coupling

  T103/78    T103/51
Outside Diameter (mm)123132
 Length (mm )255290
Thread type  T103 International Standard / Continuously right hand threaded
Type of steel Q355B / 40Cr / C45
Unit Weight (kg)7.45 12.50
 Hardness HRC 20-30
Options of Anti-corrosion  Hot-dipped Galvanization  /  Epoxy Coating
    *Hot-dipped Galvanization: ISO 1461.
    *Epoxy Coating: Bending properties up to  standard ISO 1519; Impact   properties up to standard ASTMD 2794; Adhesion up to standard ISO 2409:2007.




Package




Packaging can be customized according to customer requirements.


Certificate




FAQ

Q: Are you trading company or manufacturer ?
A: We are professional manufacturer for steel pipes,and our company also is a very professional and technical foreign trade company for steel products.We have more export experience with competitive price and best after-sales service.Apart from this,we can provide a wide range of steel products to meet the requirement of customer.


Q: Will you delivery the goods on time?
A: Yes,we promise to provide best quality products and delivery on time no matter if the price change lot or not.Honesty is our company's tenet.


Q: Do you provide samples ? is it free or extra ?
A: The sample could can provide for customer with free,but the freight will be covered by customer account.The sample freight will be returned to customer account after we cooperate.


Q: How can I get your quotation as soon as possible?
A: The email and fax will be checked within 24 hours,meanwhile,the Skype,Wechat and WhatsApp will be online in 24 hours.Please send us your requirement and order information,specification(Steel grade,size,quantity,destination port),we will work out a best price soon.

Q: Do you have any certifications?
A: Yes,that's what we guarantee to our clients. we have ISO9000,ISO9001 certificate,API5L PSL-1 CE certificates etc.Our products are of high quality and we have professional engineers and development team.


Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment or paid against copy of B/L within 5 working days.100% Irrevocable L/C at sight is favorable payment term as well.

Q: Do you accept the third party inspection?
A: Yes absolutely we accept.
