PRODUCT DESCRIPTION

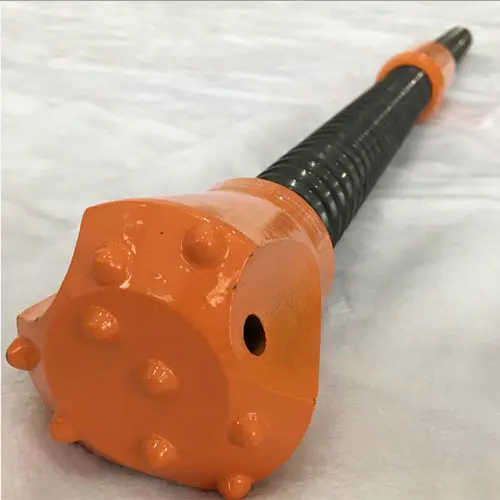

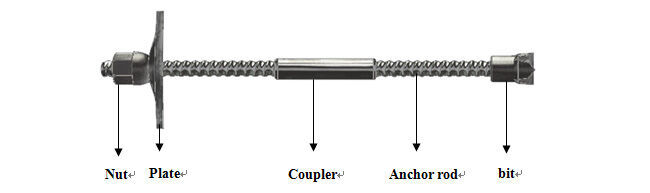

T103 Self Drilling Anchor Systems

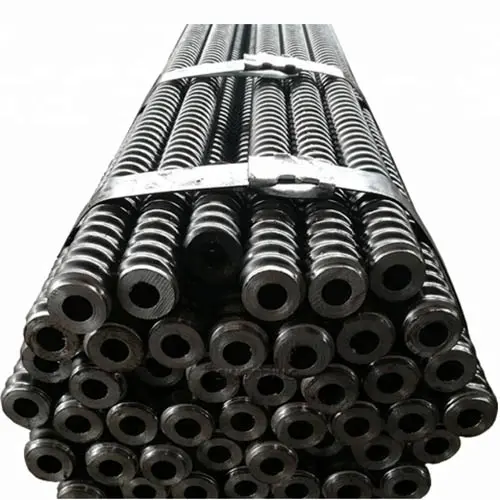

Drilling Hollow Bar

  T103/78    T103/51
Outside Diameter (mm)103103
 Internal Diameter (mm)7851
Cross sectional area (mm2)32205680
Ultimate Load(KN)≧ 2280 ≧ 3660
    Load at 0.2% Yield (kN) ≧ 1800≧ 2670
Weight (kg/m)25.30 44.60
Thread type   T103 International Standard / Continuously right hand threaded
Type of steel 40Cr / Q355B / S460NH
Elongation % Agt ≥ 5%,  A100mm ≥ 12% / 10% / 8% / 6%, A200mm ≥ 10% / 6% ...
 Length  (m) (1) x 2, x3, x4,
Options of Anti-corrosion  Hot-dipped Galvanization  /  Epoxy Coating
    *Hot-dipped Galvanization: ISO 1461.
    *Epoxy Coating: Bending properties up to  standard ISO 1519; Impact   properties up to standard ASTMD 2794; Adhesion up to standard ISO 2409:2007.

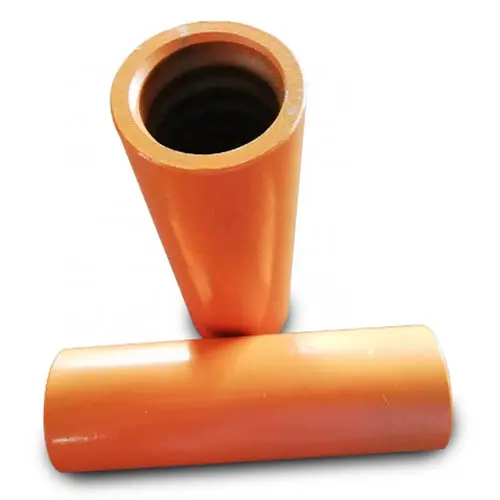

Anchor Coupling

  T103/78    T103/51
Outside Diameter (mm)123132
 Length (mm )255290
Thread type  T103 International Standard / Continuously right hand threaded
Type of steel Q355B / 40Cr / C45
Unit Weight (kg)7.45 12.50
 Hardness HRC 20-30
Options of Anti-corrosion  Hot-dipped Galvanization  /  Epoxy Coating
    *Hot-dipped Galvanization: ISO 1461.
    *Epoxy Coating: Bending properties up to  standard ISO 1519; Impact   properties up to standard ASTMD 2794; Adhesion up to standard ISO 2409:2007.


   Spherical Nut

  T103/78    T103/51
 Key Size (mm)125
Length   (mm)80
Thread type T103 International Standard / Continuously right hand threaded
Type of steel C45 / 40Cr / Q355B
   Unit Weight (kg)3.42
  Hardness (HRC) HRC 20-30
 Options of Anti-corrosionHot-dipped Galvanization  /  Epoxy Coating
    *Hot-dipped Galvanization: ISO 1461.
    *Epoxy Coating: Bending properties up to  standard ISO 1519; Impact   properties up to standard ASTMD 2794; Adhesion up to standard ISO 2409:2007.


Anchor Plate

  T103/78    T103/51
Size (mm)300x 300
Thickness  (mm)5050
Hole Diameter (mm)110110
Unit Weight (kg)32.60 32.60
 Options of Anti-corrosionHot-dipped Galvanization  /  Epoxy Coating
    *Hot-dipped Galvanization: ISO 1461.
    *Epoxy Coating: Bending properties up to  standard ISO 1519; Impact   properties up to standard ASTMD 2794; Adhesion up to standard ISO 2409:2007.


Centralizer
Thread typeT103
 Outside Diameter (mm)165
 Length (mm)70
Hole Diameter (mm)110
Type of steel C45 / GFRP
 Unit Weight (kg)2.93

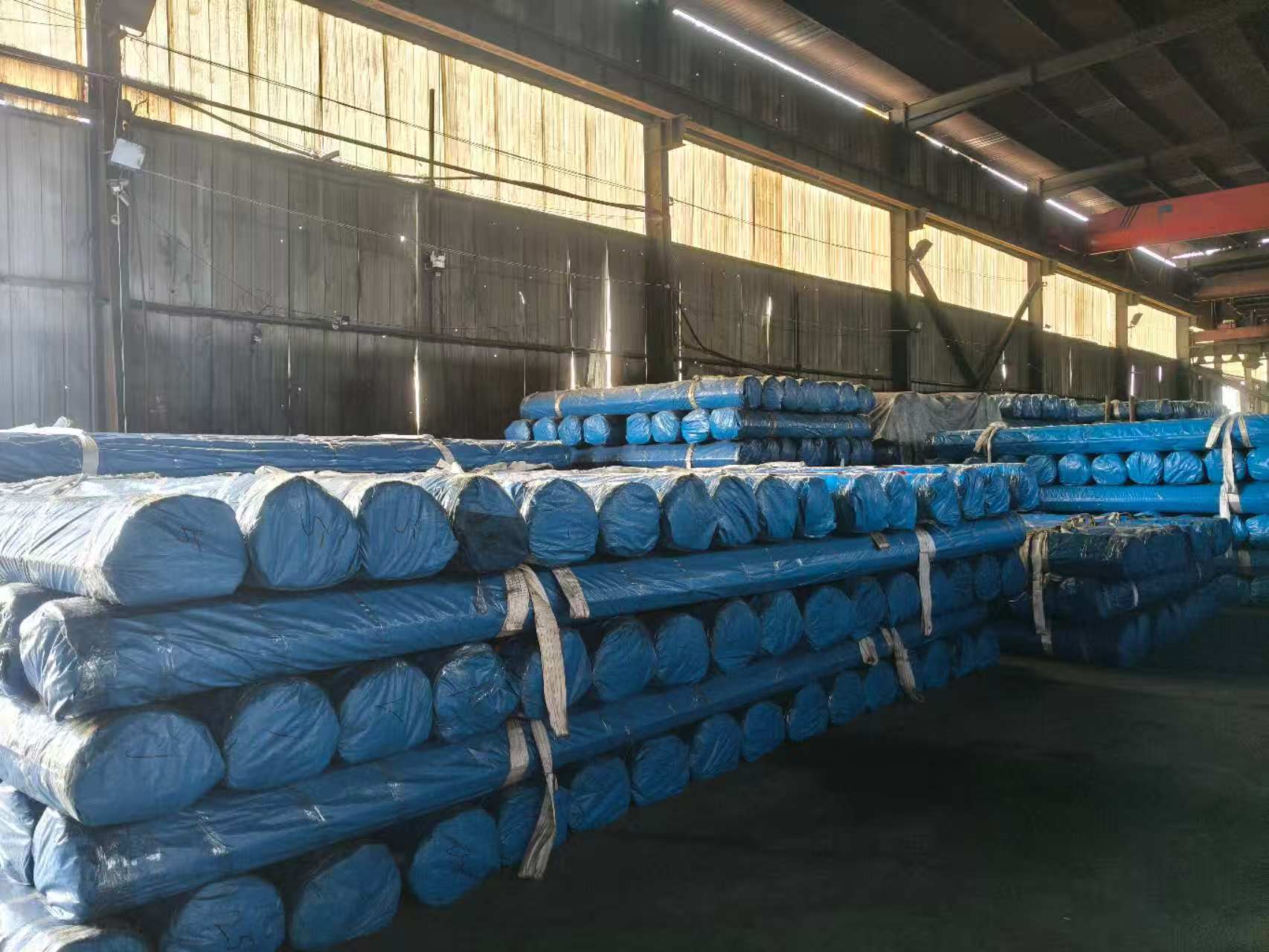

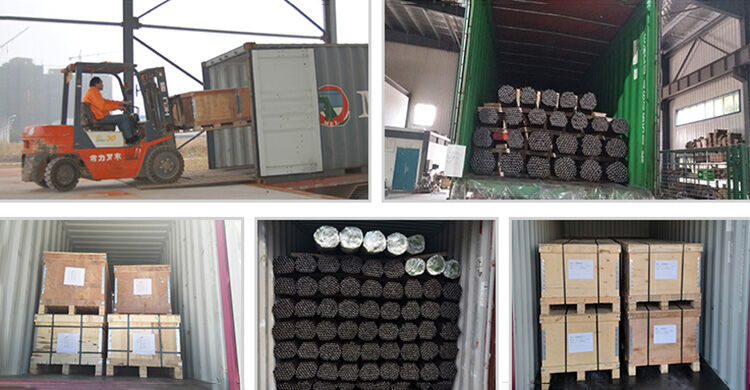

Transportation:




Certificate:

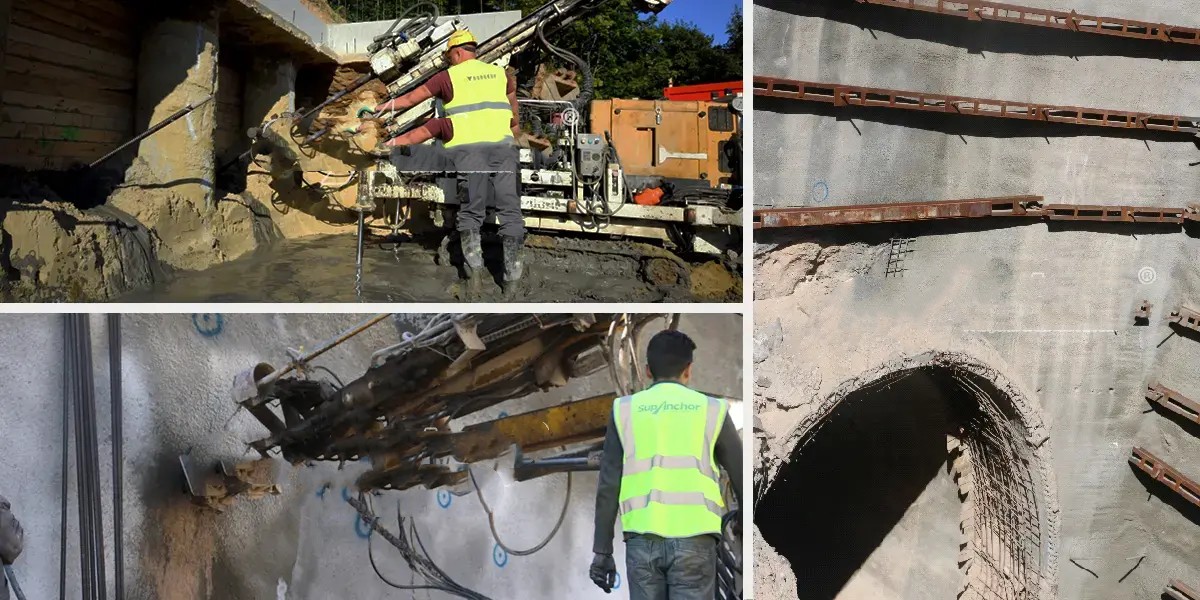

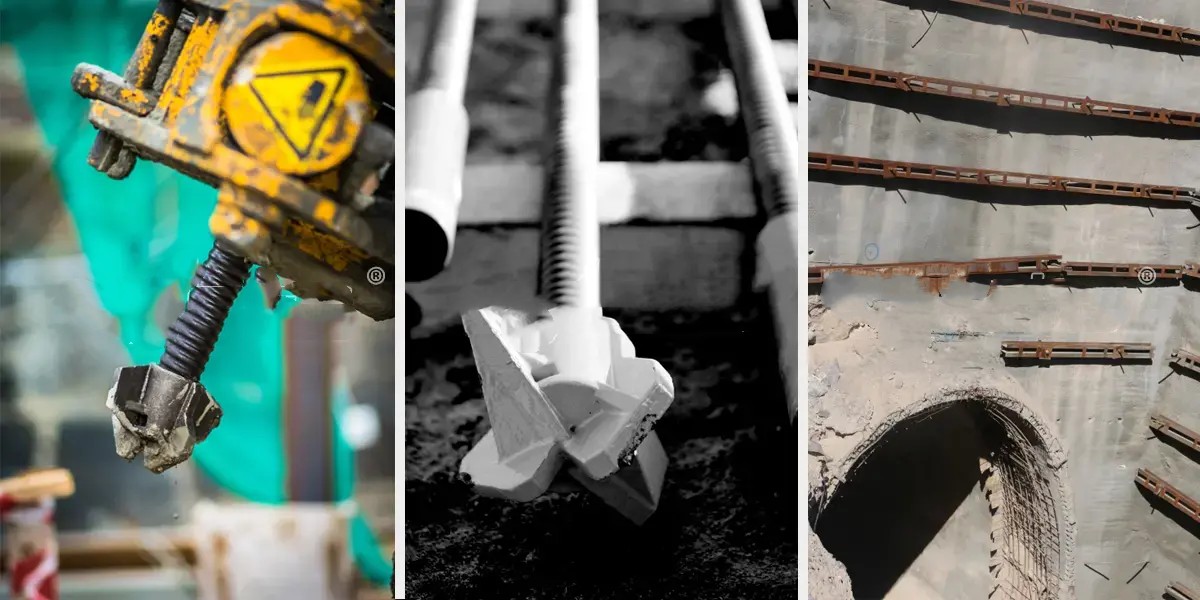

Applications:





FAQ

Q: Are you trading company or manufacturer ?
A: We are professional manufacturer for steel pipes,and our company also is a very professional and technical foreign trade company for steel products.We have more export experience with competitive price and best after-sales service.Apart from this,we can provide a wide range of steel products to meet the requirement of customer.


Q: Will you delivery the goods on time?
A: Yes,we promise to provide best quality products and delivery on time no matter if the price change lot or not.Honesty is our company's tenet.


Q: Do you provide samples ? is it free or extra ?
A: The sample could can provide for customer with free,but the freight will be covered by customer account.The sample freight will be returned to customer account after we cooperate.


Q: How can I get your quotation as soon as possible?
A: The email and fax will be checked within 24 hours,meanwhile,the Skype,Wechat and WhatsApp will be online in 24 hours.Please send us your requirement and order information,specification(Steel grade,size,quantity,destination port),we will work out a best price soon.

Q: Do you have any certifications?
A: Yes,that's what we guarantee to our clients. we have ISO9000,ISO9001 certificate,API5L PSL-1 CE certificates etc.Our products are of high quality and we have professional engineers and development team.


Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment or paid against copy of B/L within 5 working days.100% Irrevocable L/C at sight is favorable payment term as well.

Q: Do you accept the third party inspection?
A: Yes absolutely we accept.
