T76 Self Drilling Anchor Systems

Send us an inquiry and we will reply you as soon as possible

Inquiry Now
PRODUCT DESCRIPTION

T76 Self Drilling Anchor Systems

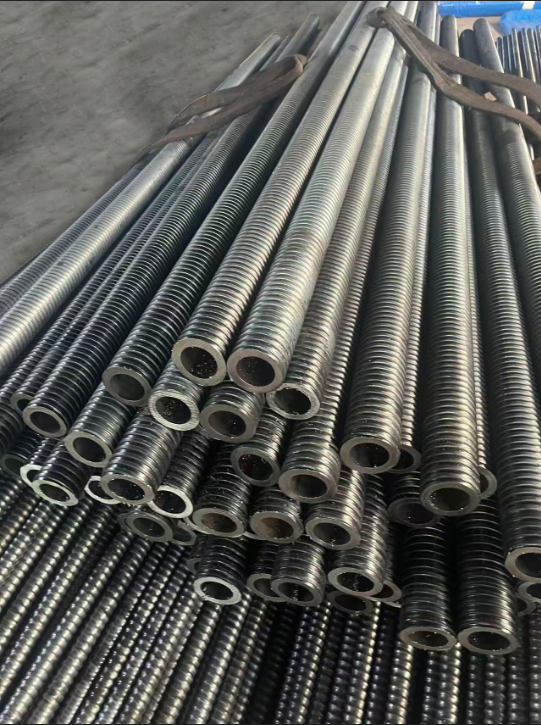

Drilling Hollow Bar

T76N/51  T76/45
Outside Diameter (mm)7676
 Internal Diameter (mm)5145
Cross sectional area (mm2)20002400
Ultimate Load(KN) ≥ 1600≥ 1900
Yield Load(KN) ≥ 1200 ≥ 1500
Weight (kg/m)16.50 19.00
Type of steel40Cr / 20Cr / Q355B
Elongation % Agt ≥ 5%,  A100mm ≥ 12% / 10% / 8% / 6%, A200mm ≥ 10% / 6%
Thread type   T76 International Standard / Left or Right
 Length  (m) (1) x 2, x3, x4, x5, x6, x7, x8, x9
Options of Anti-corrosion  Hot-dipped Galvanization  /  Epoxy Coating
Hot-dipped Galvanization: ISO 1461.
Epoxy Coating: Bending properties up to  standard ISO 1519; Impact properties up to standard ASTMD 2794; Adhesion up to standard ISO 2409:2007.



Anchor Coupling

T76N/51  T76/45
Outside Diameter (mm)9595
 Length (mm )200220
Thread typeT76 International Standard / Left or Right

40Cr / Q355B / 20Cr /C45
Unit Weight (kg)4.30 5.35
 Hardness HRC 20-30
Options of Anti-corrosion  Hot-dipped Galvanization  /  Epoxy Coating
Hot-dipped Galvanization: ISO 1461.
Epoxy Coating: Bending properties up to  standard ISO 1519; Impact properties up to standard ASTMD 2794; Adhesion up to standard ISO 2409:2007.


Anchor Nut

T76N/51  T76/45
SW (mm)100
Length   (mm)80
Thread typeT76 International Standard / Left or Right
Type of steel40Cr / C45 / Q355B / 20Cr
Unit Weight (kg)2.66
 Nut typeHex Nut  / Spherical Nut
 Hardness HRC 20-30
 Options of Anti-corrosionHot-dipped Galvanization  /  Epoxy Coating
Hot-dipped Galvanization: ISO 1461.
Epoxy Coating: Bending properties up to  standard ISO 1519; Impact properties up to standard ASTMD 2794; Adhesion up to standard ISO 2409:2007.


Anchor Plate

T76N/51  T76/45
Size (mm)200 x 200
Thickness  (mm)4060
Hole Diameter (mm)80
Type of steel Q235 / C45 / Q355B
Unit Weight (kg)18.00 26.80
 Options of Anti-corrosionHot-dipped Galvanization  /  Epoxy Coating
Hot-dipped Galvanization: ISO 1461.
Epoxy Coating: Bending properties up to  standard ISO 1519; Impact properties up to standard ASTMD 2794; Adhesion up to standard ISO 2409:2007.

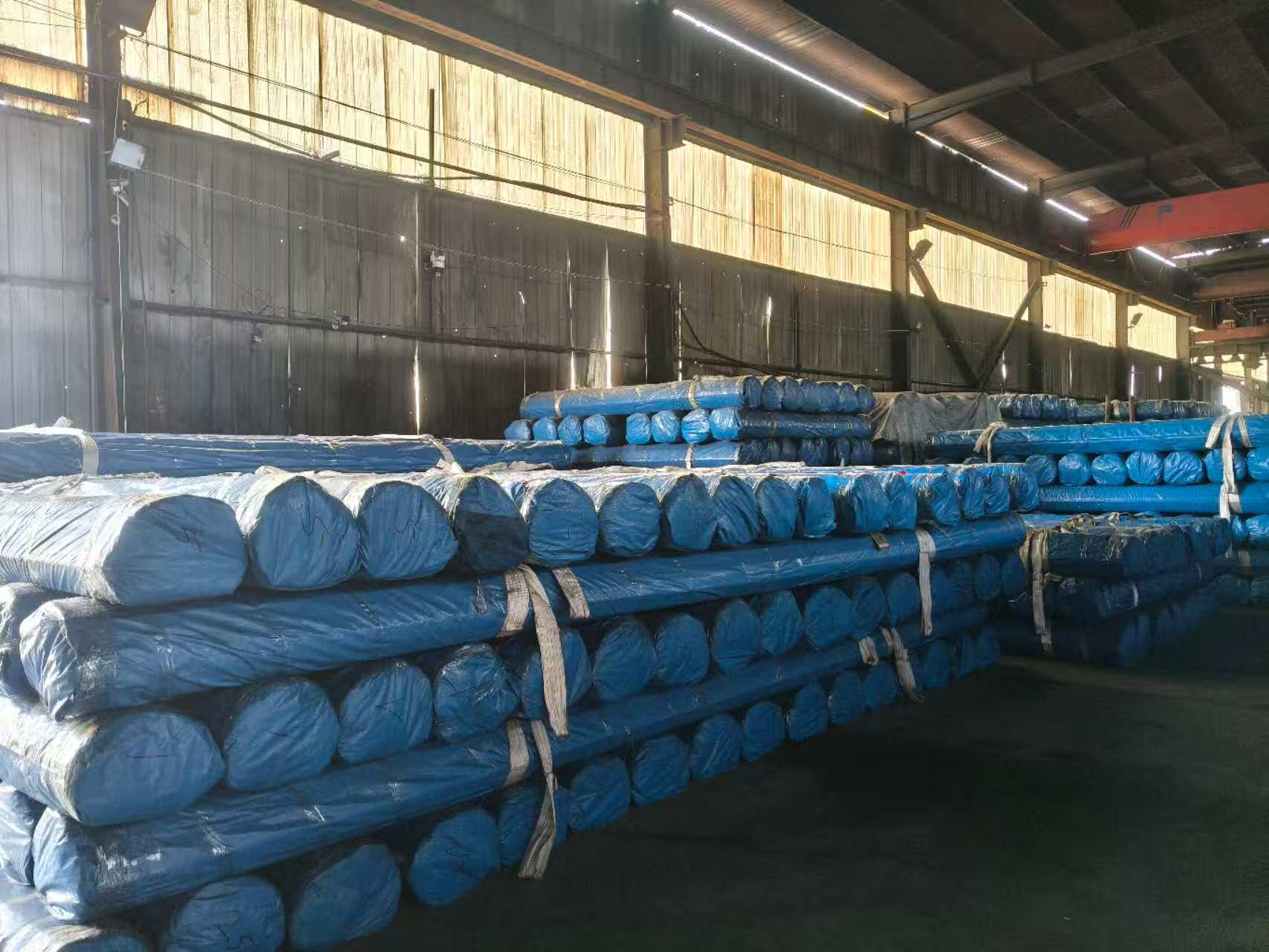

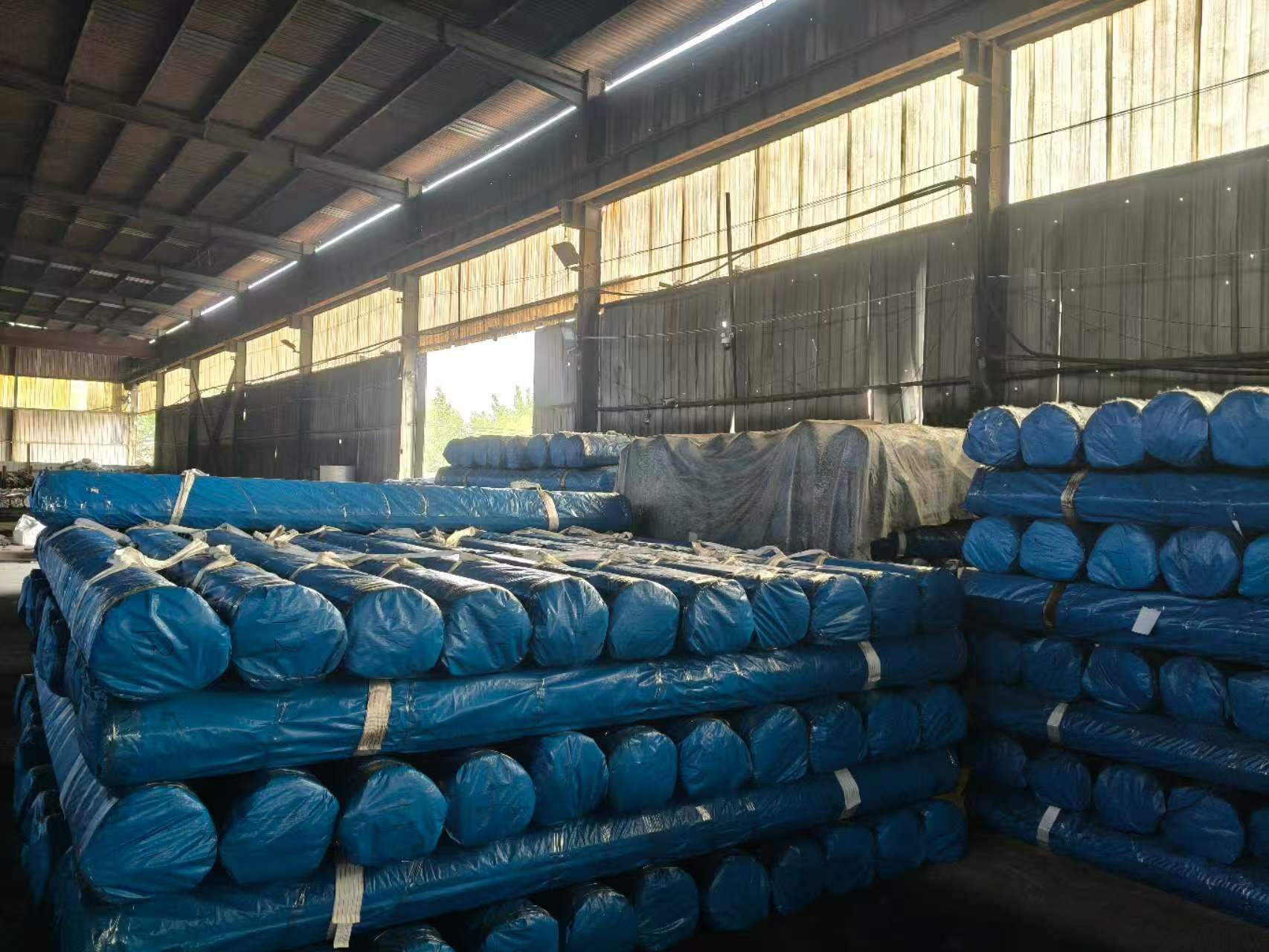

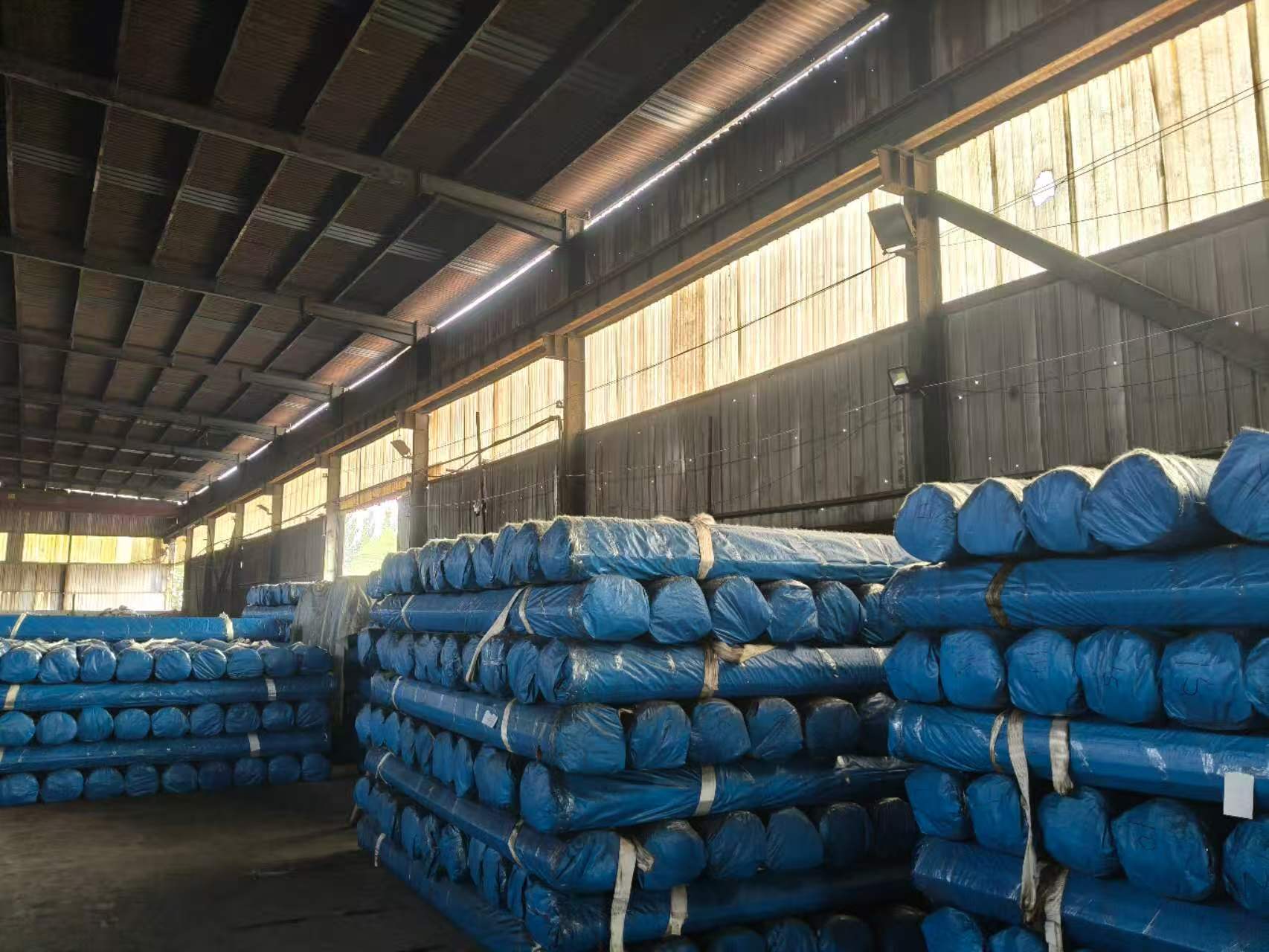

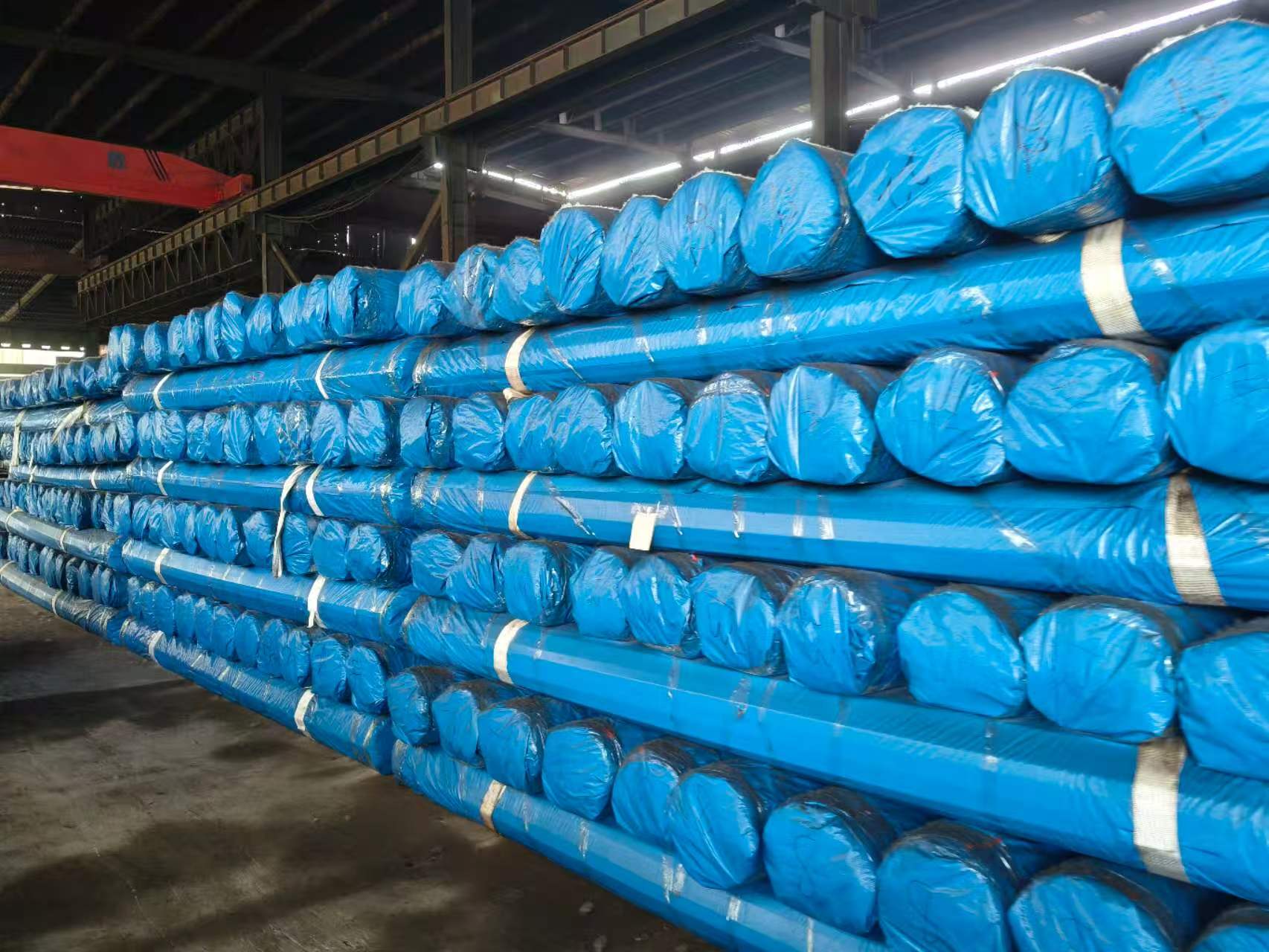

Transportation:




Certificate:



Applications:







FAQ

Q: Are you trading company or manufacturer ?
A: We are professional manufacturer for steel pipes,and our company also is a very professional and technical foreign trade company for steel products.We have more export experience with competitive price and best after-sales service.Apart from this,we can provide a wide range of steel products to meet the requirement of customer.


Q: Will you delivery the goods on time?
A: Yes,we promise to provide best quality products and delivery on time no matter if the price change lot or not.Honesty is our company's tenet.


Q: Do you provide samples ? is it free or extra ?
A: The sample could can provide for customer with free,but the freight will be covered by customer account.The sample freight will be returned to customer account after we cooperate.


Q: How can I get your quotation as soon as possible?
A: The email and fax will be checked within 24 hours,meanwhile,the Skype,Wechat and WhatsApp will be online in 24 hours.Please send us your requirement and order information,specification(Steel grade,size,quantity,destination port),we will work out a best price soon.

Q: Do you have any certifications?
A: Yes,that's what we guarantee to our clients. we have ISO9000,ISO9001 certificate,API5L PSL-1 CE certificates etc.Our products are of high quality and we have professional engineers and development team.


Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment or paid against copy of B/L within 5 working days.100% Irrevocable L/C at sight is favorable payment term as well.

Q: Do you accept the third party inspection?
A: Yes absolutely we accept.
