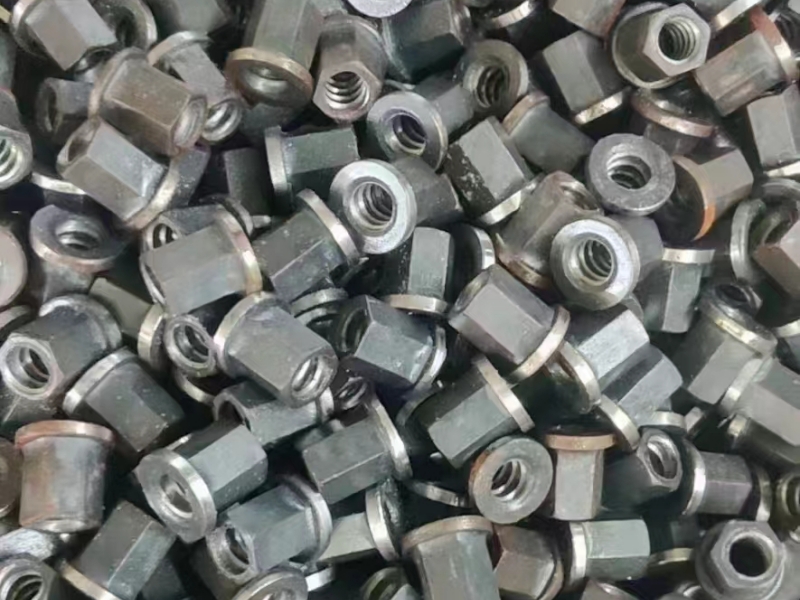

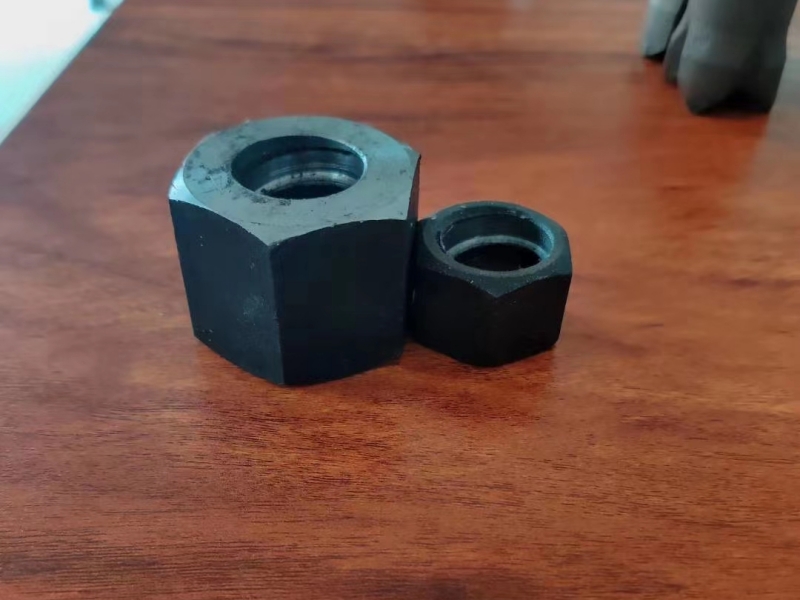

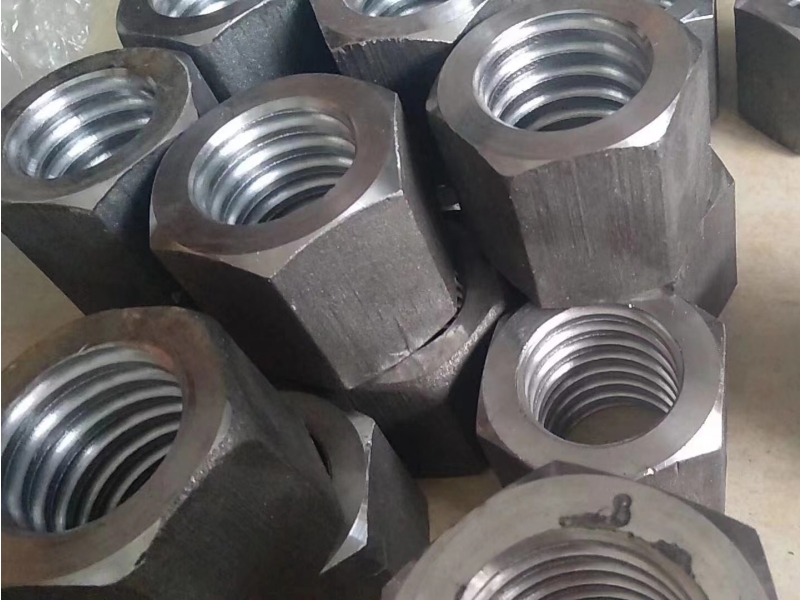

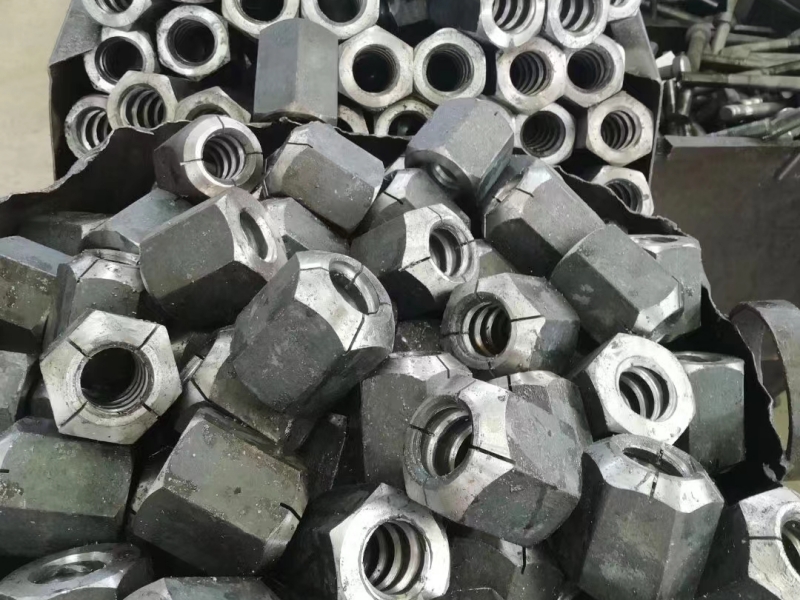

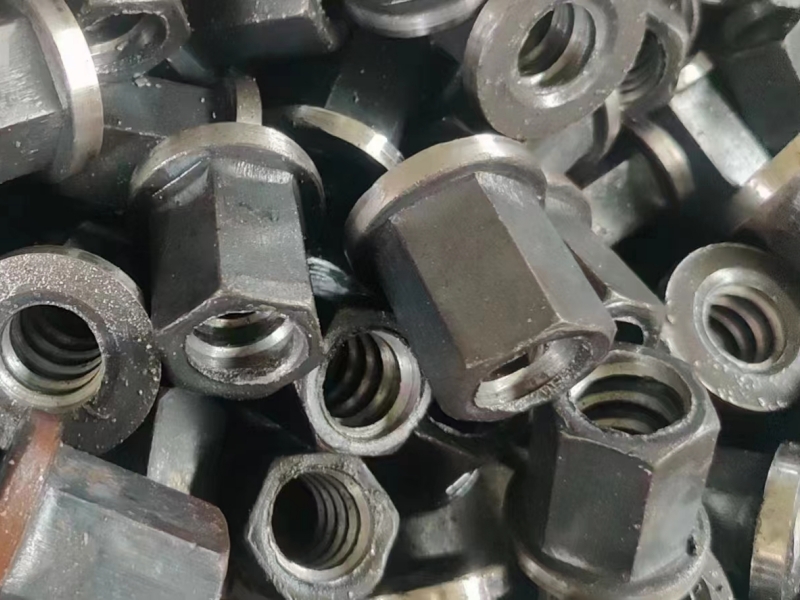

Self drilling anchor nut

Send us an inquiry and we will reply you as soon as possible

Inquiry Now
PRODUCT DESCRIPTION

Self drilling anchor nut






R32L/22R32N/20R32N/18.5R32S/17R32S/15R32S/14
SW (mm)46
Length   (mm)454545656575
Thread typeISO 10208 - R32  / Left or Right
Type of steel40Cr / C45 / Q355B / 20Cr
Unit Weight (kg)0.350.350.350.530.530.62
 Nut typeHex Nut  / Spherical Nut
 Hardness HRC 20-30
 Options of Anti-corrosionHot-dipped Galvanization  /  Epoxy Coating
Hot-dipped Galvanization: ISO 1461.
Epoxy Coating: Bending properties up to  standard ISO 1519; Impact properties up to standard ASTMD 2794; Adhesion up to standard ISO 2409:2007.


Anchor Nut

R38N/21R38N/19 R38/550 R38/600 R38/660
Key Size SW(mm)5050505050
Length   (mm)6060708090
Thread type   ISO10208 - R38 / Left or Right
Type of steel40Cr / C45
Unit Weight (kg)0.450.450.580.660.74
 Nut typeHex Nut  / Spherical Nut
 Hardness HRC 20-30
 Options of Anti-corrosion  Hot-dipped Galvanization  /  Epoxy Coating
    *Hot-dipped Galvanization: ISO 1461.
    *Epoxy Coating: Bending properties up to  standard ISO 1519;Impact properties up to standard ASTMD 2794; Adhesion up to standard ISO 2409:2007.



Anchor Nut

R51L/36R51L/34 R51N/33 R51N/31 R51/950R51/660
Key Size SW(mm)757575757575
Length   (mm)707070709070
Thread typeISO 1720 - R51 / Left or Right
Type of steel40Cr / C45
Unit Weight (kg)1.531.531.531.531.921.50
 Nut typeHex Nut  / Spherical Nut
 Hardness HRC 20-30
 Options of Anti-corrosionHot-dipped Galvanization  /  Epoxy Coating
Hot-dipped Galvanization: ISO 1461.
Epoxy Coating: Bending properties up to  standard ISO 1519; Impact properties up to standard ASTMD 2794; Adhesion up to standard ISO2409:2007.




  T40/20     T40/16
 Key Size (mm)65
Length   (mm)50
Thread type  T40 International Standard / Left or Right
Type of steel  Q355B / 40Cr / C45
   Unit Weight (kg)    0.85
  Hardness (HRC) HRC 20-30
 Options of Anti-corrosionHot-dipped Galvanization  /  Epoxy Coating
    *Hot-dipped Galvanization: ISO 1461.
    *Epoxy Coating: Bending properties up to  standard ISO 1519; Impact   properties up to standard ASTMD 2794; Adhesion up to standard ISO 2409:2007.
    *SupCoat:  HDG + EC



   Spherical Nut

    T52/26
 Key Size (mm)80
Length   (mm)70
Thread type  T52 International Standard / Left or Right
Type of steel  Q355B / 40Cr / C45
   Unit Weight (kg)2.35
  Hardness HRC 20-30
 Options of Anti-corrosionHot-dipped Galvanization  /  Epoxy Coating
    *Hot-dipped Galvanization: ISO 1461.
    *Epoxy Coating: Bending properties up to  standard ISO 1519; Impact   properties up to standard ASTMD 2794; Adhesion up to standard ISO 2409:2007.



     T73/53 T73/56      T73/45T73/35
 Key Size SW (mm)95
Length   (mm)70
Thread typeT73 International Standard / Continuously right hand threaded
Type of steelQ355B / 40Cr / C45
   Unit Weight (kg)2.20
  Hardness (HRC) HRC 20-30
 Options of Anti-corrosionHot-dipped Galvanization  /  Epoxy Coating
    *Hot-dipped Galvanization: ISO 1461.
    *Epoxy Coating: Bending properties up to  standard ISO 1519; Impact   properties up to standard ASTMD 2794; Adhesion up to standard ISO 2409:2007.



  T103/78    T103/51
 Key Size (mm)125
Length   (mm)80
Thread type T103 International Standard / Continuously right hand threaded
Type of steel C45 / 40Cr / Q355B
   Unit Weight (kg)3.42
  Hardness (HRC) HRC 20-30
 Options of Anti-corrosionHot-dipped Galvanization  /  Epoxy Coating
    *Hot-dipped Galvanization: ISO 1461.
    *Epoxy Coating: Bending properties up to  standard ISO 1519; Impact   properties up to standard ASTMD 2794; Adhesion up to standard ISO 2409:2007.

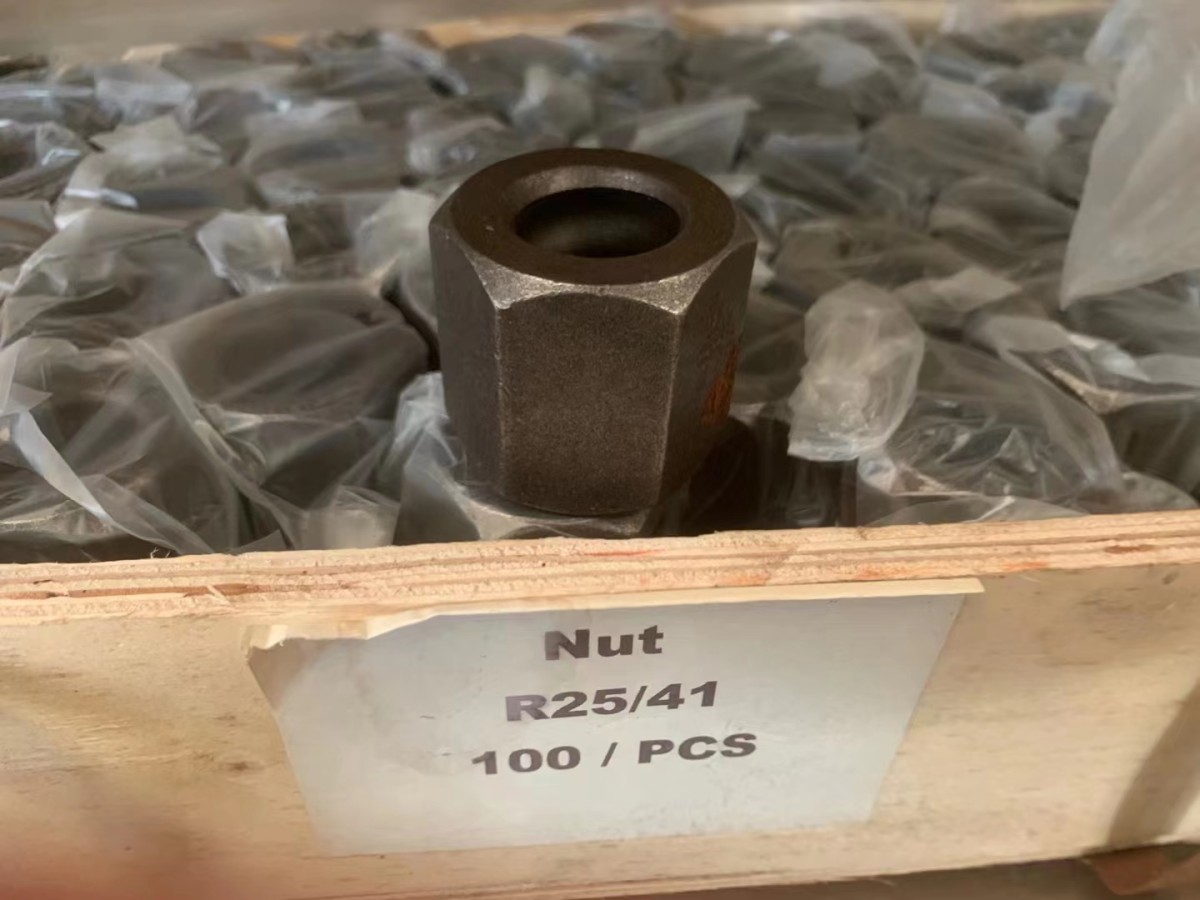

PACKAGE
