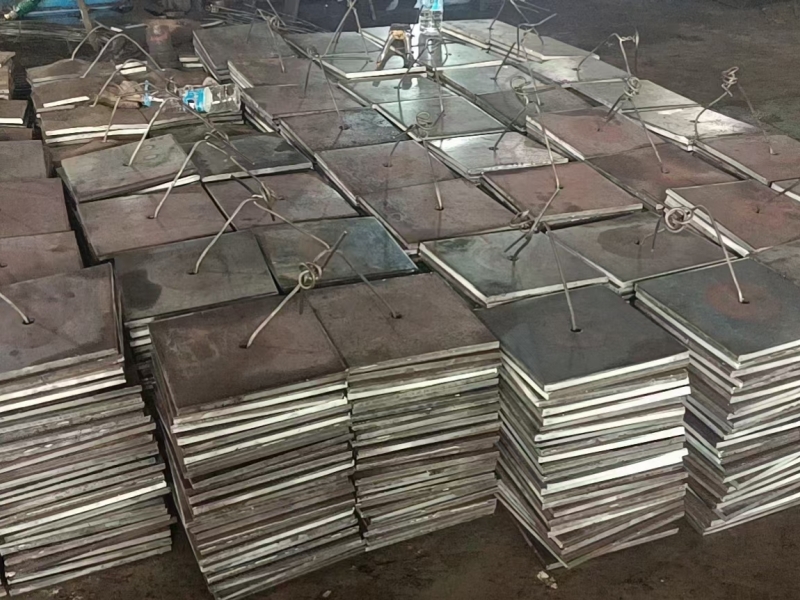

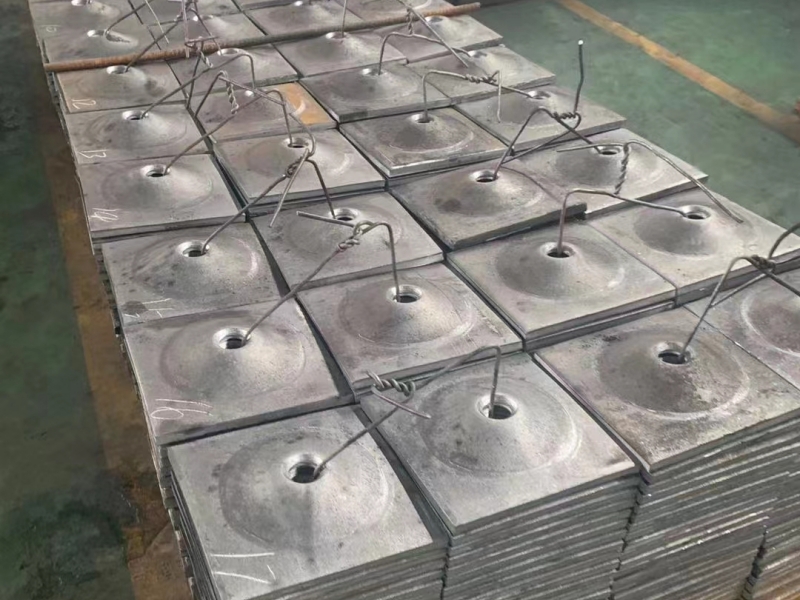

Self drilling anchor plate

Send us an inquiry and we will reply you as soon as possible

Inquiry Now
PRODUCT DESCRIPTION

Self drilling anchor nut








R32L/22R32N/20R32N/18.5R32S/17R32S/15R32S/14
Size (mm)200 x 200
Thickness  (mm)101010121212
Hole Diameter (mm)35
Type of steel Q235 / C45 / Q355B
Unit Weight (kg)3.00 3.00 3.00 3.60 3.60 3.60
 Options of Anti-corrosionHot-dipped Galvanization  /  Epoxy Coating
Hot-dipped Galvanization: ISO 1461.
Epoxy Coating: Bending properties up to  standard ISO 1519; Impact properties up to standard ASTMD 2794; Adhesion up to standard ISO 2409:2007.



R38N/21R38N/19 R38/550 R38/600 R38/660
Size (mm)200 x 200200 x 200
Thickness  (mm)1216
Hole Diameter (mm)4141
Unit Weight (kg)3.60 4.80
 Options of Anti-corrosion  Hot-dipped Galvanization  /  Epoxy Coating
    *Hot-dipped Galvanization: ISO 1461.
    *Epoxy Coating: Bending properties up to  standard ISO 1519;Impact properties up to standard ASTMD 2794; Adhesion up to standard ISO 2409:2007.



R51L/36R51L/34 R51N/33 R51N/31 R51/950R51/660
Size (mm)200 x 200200 x 200250 x250250 x250250 x250200 x 200
Thickness  (mm)303030404030
Hole Diameter (mm)60
Unit Weight (kg)8.80 8.80 14.00 18.50 18.50 8.80
 Options of Anti-corrosionHot-dipped Galvanization  /  Epoxy Coating
Hot-dipped Galvanization: ISO 1461.
Epoxy Coating: Bending properties up to  standard ISO 1519; Impact properties up to standard ASTMD 2794; Adhesion up to standard ISO 2409:2007.




      T30/16  T30/14T30/11
Size (mm) 200 x 200  200 x 200200 x 200
Thickness  (mm)8810
Hole Diameter (mm)36
Unit Weight (kg)2.462.463
 Options of Anti-corrosionHot-dipped Galvanization  /  Epoxy Coating
    *Hot-dipped Galvanization: ISO 1461.
    *Epoxy Coating: Bending properties up to  standard ISO 1519; Impact   properties up to standard ASTMD 2794; Adhesion up to standard ISO 2409:2007.



  T40/20     T40/16
Size (mm)200x 200200x 200
Thickness  (mm)1216
Hole Diameter (mm)5454
Unit Weight (kg)3.50 4.60
 Options of Anti-corrosionHot-dipped Galvanization  /  Epoxy Coating
    *Hot-dipped Galvanization: ISO 1461.
    *Epoxy Coating: Bending properties up to  standard ISO 1519; Impact   properties up to standard ASTMD 2794; Adhesion up to standard ISO 2409:2007.



    T52/26
Size (mm)220x220
Thickness  (mm)35
Hole Diameter (mm)65
Unit Weight (kg)12.10
 Options of Anti-corrosionHot-dipped Galvanization  /  Epoxy Coating  /  SupCoat
    *Hot-dipped Galvanization: ISO 1461.
    *Epoxy Coating: Bending properties up to  standard ISO 1519; Impact   properties up to standard ASTMD 2794; Adhesion up to standard ISO 2409:2007.
    *SupCoat:  HDG + EC




     T73/53 T73/56      T73/45T73/35
Size (mm)250x 250
Thickness  (mm)40404040
Hole Diameter (mm)80808080
Unit Weight (kg)18.00 18.00 18.00 18.00
 Options of Anti-corrosionHot-dipped Galvanization  /  Epoxy Coating
    *Hot-dipped Galvanization: ISO 1461.
    *Epoxy Coating: Bending properties up to  standard ISO 1519; Impact   properties up to standard ASTMD 2794; Adhesion up to standard ISO 2409:2007.



  T103/78    T103/51
Size (mm)300x 300
Thickness  (mm)5050
Hole Diameter (mm)110110
Unit Weight (kg)32.60 32.60
 Options of Anti-corrosionHot-dipped Galvanization  /  Epoxy Coating
    *Hot-dipped Galvanization: ISO 1461.
    *Epoxy Coating: Bending properties up to  standard ISO 1519; Impact   properties up to standard ASTMD 2794; Adhesion up to standard ISO 2409:2007.

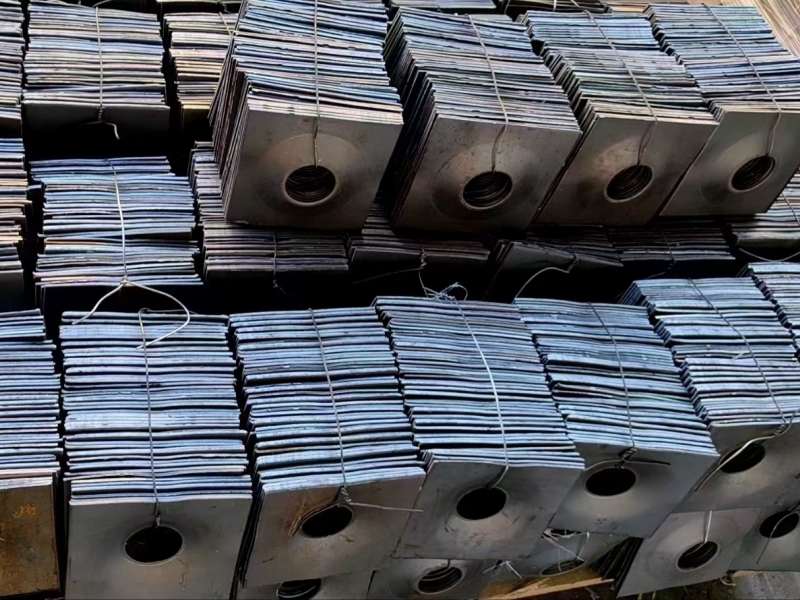

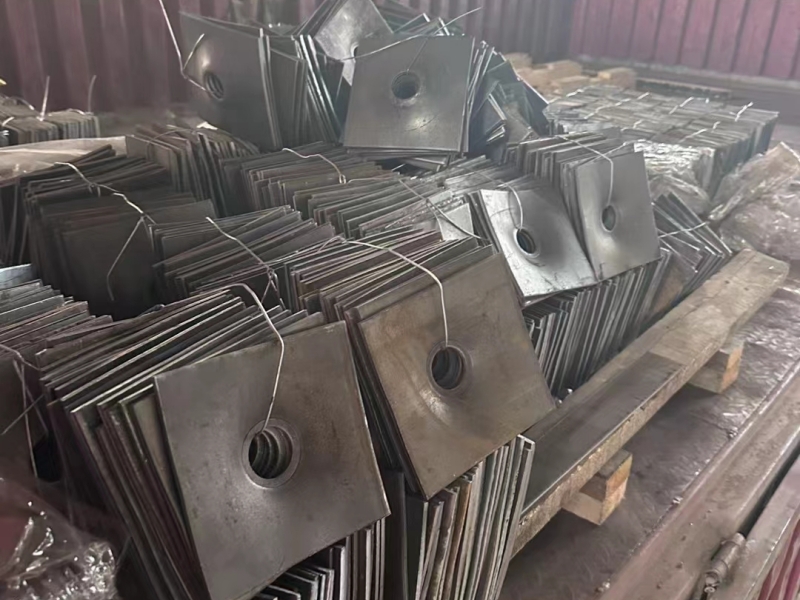

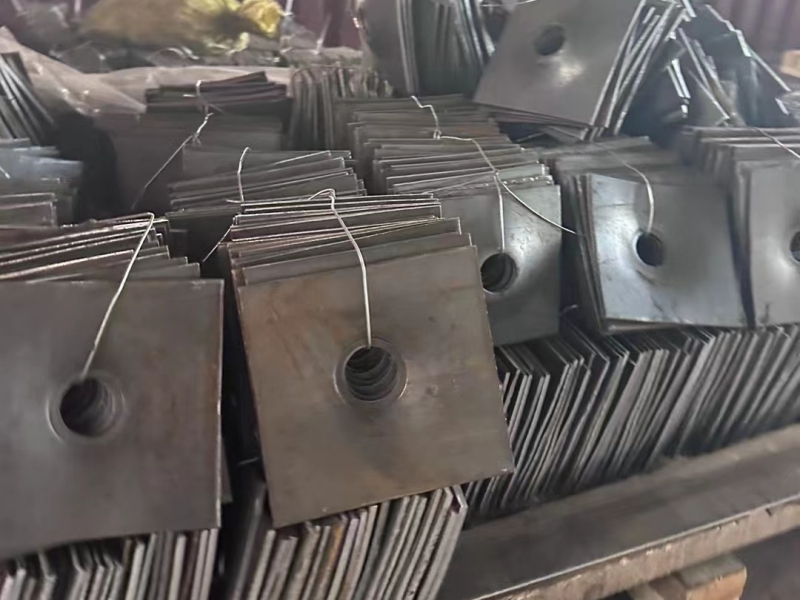

PACKAGE






PROCESS




WORKSHOP



CERTIFICATE






FAQ

Q: Are you trading company or manufacturer ?
A: We are professional manufacturer for steel pipes,and our company also is a very professional and technical foreign trade company for steel products.We have more export experience with competitive price and best after-sales service.Apart from this,we can provide a wide range of steel products to meet the requirement of customer.


Q: Will you delivery the goods on time?
A: Yes,we promise to provide best quality products and delivery on time no matter if the price change lot or not.Honesty is our company's tenet.


Q: Do you provide samples ? is it free or extra ?
A: The sample could can provide for customer with free,but the freight will be covered by customer account.The sample freight will be returned to customer account after we cooperate.


Q: How can I get your quotation as soon as possible?
A: The email and fax will be checked within 24 hours,meanwhile,the Skype,Wechat and WhatsApp will be online in 24 hours.Please send us your requirement and order information,specification(Steel grade,size,quantity,destination port),we will work out a best price soon.

Q: Do you have any certifications?
A: Yes,that's what we guarantee to our clients. we have ISO9000,ISO9001 certificate,API5L PSL-1 CE certificates etc.Our products are of high quality and we have professional engineers and development team.


Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment or paid against copy of B/L within 5 working days.100% Irrevocable L/C at sight is favorable payment term as well.

Q: Do you accept the third party inspection?
A: Yes absolutely we accept.
