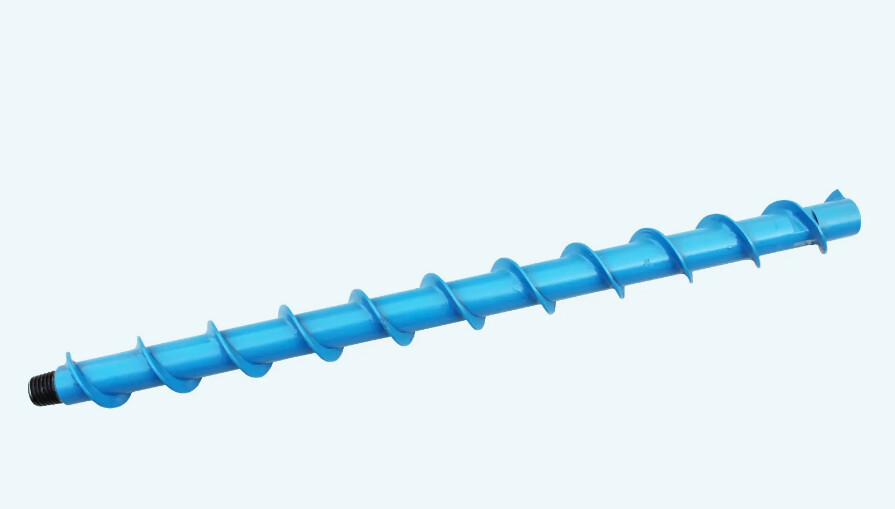

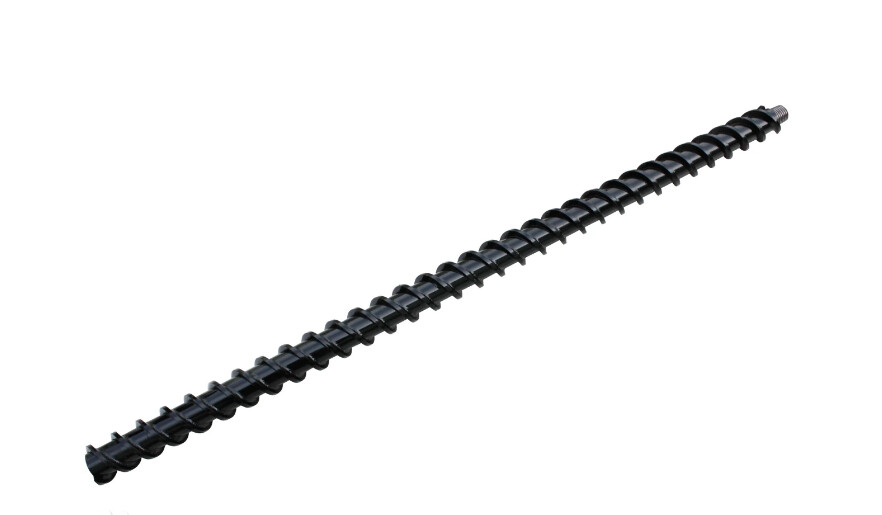

Spiral geological drill rod

The auger drill pipe is connected end to end in a square or hexagonal manner, and uses spring pins for automatic locking or semicircular pins, straight pins, U-shaped pins, or oblong wedge pins for connection and positioning, and can be quickly connected. It is easy and quick to connect, has the characteristics of light weight, high elasticity and not easy to bend. Compared with other drill pipes, it has the obvious advantages of easy operation and fast drilling speed, so it is also called high-efficiency spiral drill pipe.

The auger drill pipe is a helical drill pipe connected in four or six directions. In a broad sense, it also includes other drill pipes with quick connections, such as water exploration drill pipes, gas discharge drill pipes, inspection drill pipes, fujima drill pipes, and large-sized drill pipes. Coinciding with the geological auger drill pipe. It is customary to specifically refer to the four quick-connect types of auger drill pipes: Φ42mm, Φ69mm, Φ76mm, and 89mm.

Product Parameters

Length: 0.5m, 1m, 1.5m, 2m, 2.5m, 3m (can be customized)

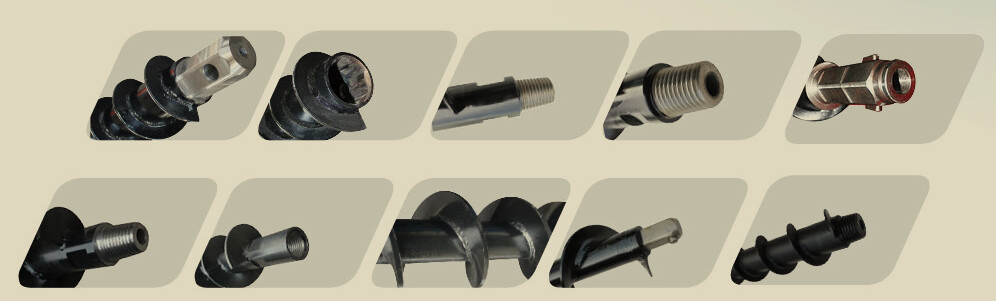

Connection Type

Buckle type: four-way connection type, six-way connection type

Sifang: F12 F13 F14 F18 F24 F26 F28 F30 F32

Six parties: B20 B32 B34 B41 B45 B55, etc.

Product Usage

Application fields: It is widely used in drilling under geological conditions of coal seams and near coal seams, water exploration in coal mines and gas discharge drilling construction. It can also be used in anchoring and drilling construction of geophysical prospecting and water conservancy construction projects.

Product Advantage

The body of the quick-connect spiral drill pipe is made of high-pressure seamless steel pipe, and the drill pipe joint is made of 42CrmoA high-quality alloy structural steel. It has been vacuum-conditioned and welded with the drill pipe body using advanced high-pressure interference assembly technology and friction welding technology. The spiral blades It is made of high wear-resistant T-shaped steel belt, prestressed and wound, and welded by fully automatic welding equipment. This series of products adopts a square or hexagonal quick connection method, which is automatically locked by a spring pin during use, and is equipped with a U-shaped pin or semi-circular anti-separation pin, so that the torque of the drill pipe and the drilling depth can be optimized.

Product process: cold installation, hot installation, friction welding

Cold installation process: The inner holes at both ends of the rod body are pre-processed with inner square holes, and then the square steel is inserted into the pre-processed inner square holes at one end to drill welding spot holes and pin holes for fixation. It is suitable for all high-efficiency spiral drill rods.

Hot fitting process: One end of the rod body is pre-processed with an inner square hole, and the other end is heated. The square steel is installed on the fixture, and the square steel is directly pressed into the inside of the rod body, and then the pin hole is drilled and the pin is welded. It is suitable for F18, F24, F32.

Friction welding process: It can be applied to all high-efficiency auger drill pipes. Currently, with the gradual improvement of technology, friction welding process will gradually replace the existing cold and hot charging processes in high-efficiency auger drill pipes.

Technical Parameters

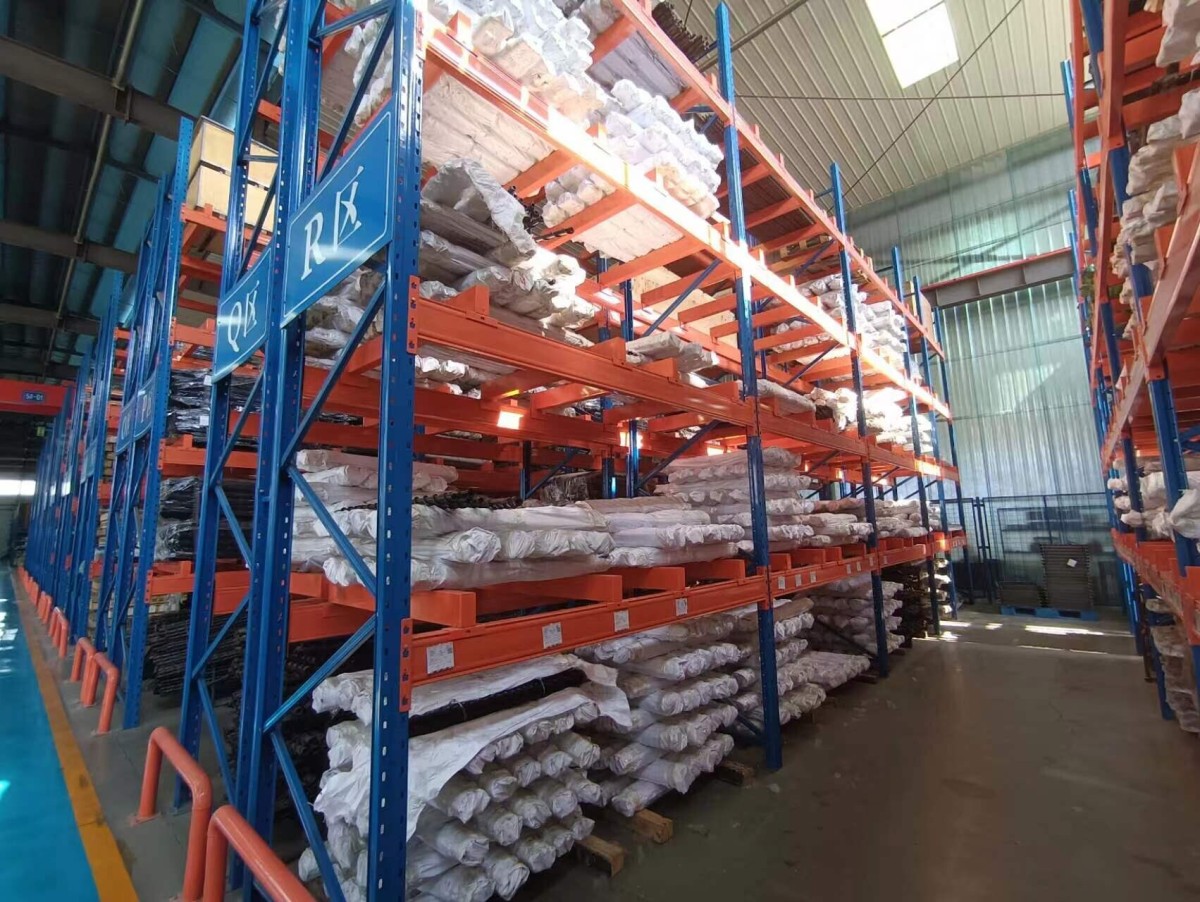

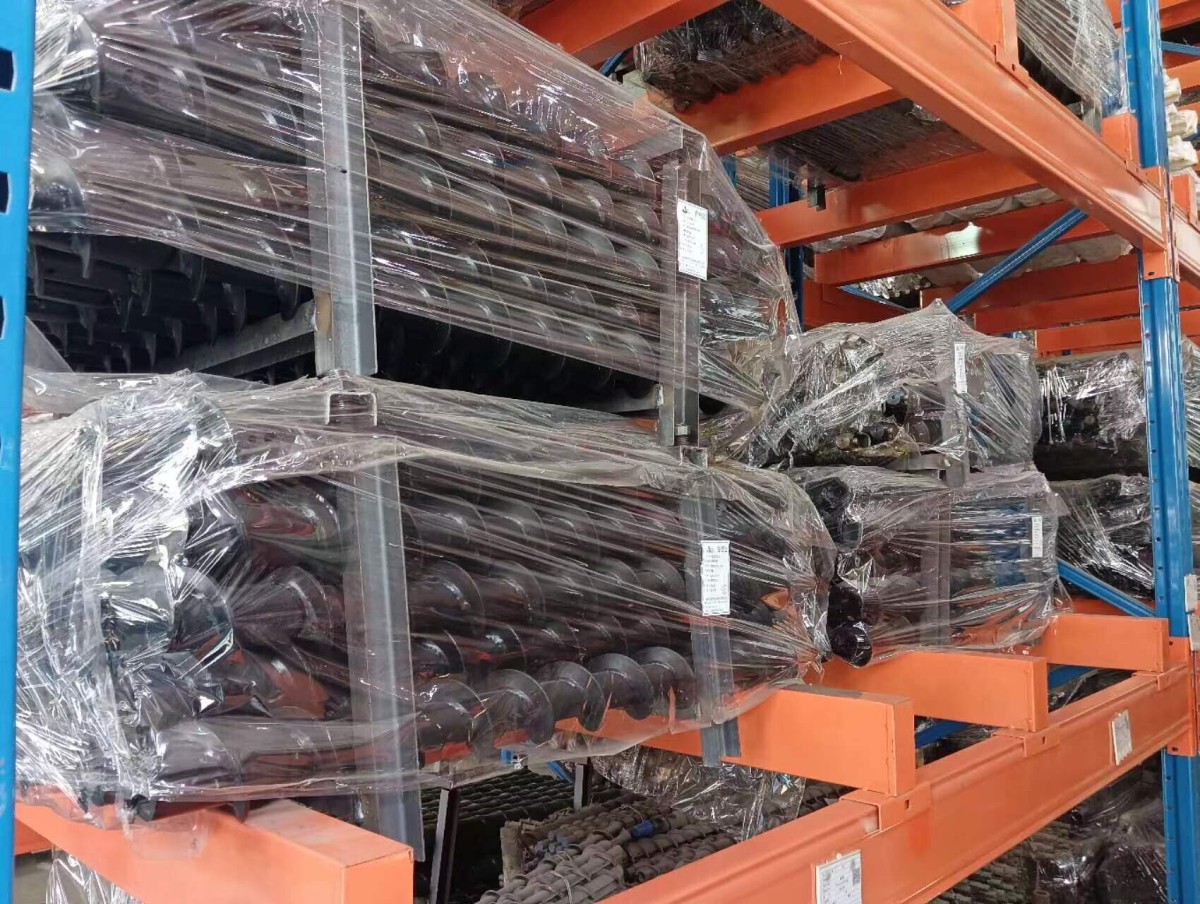

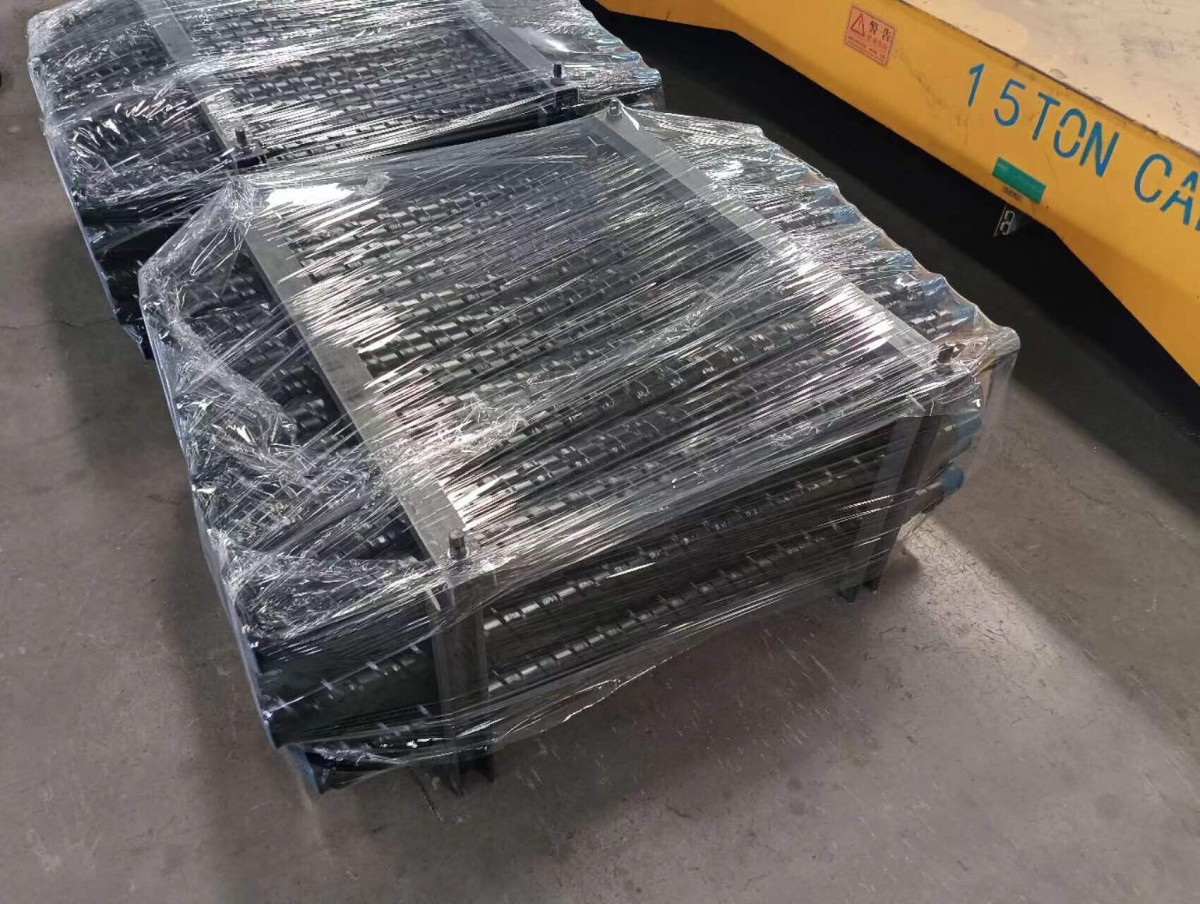

Package

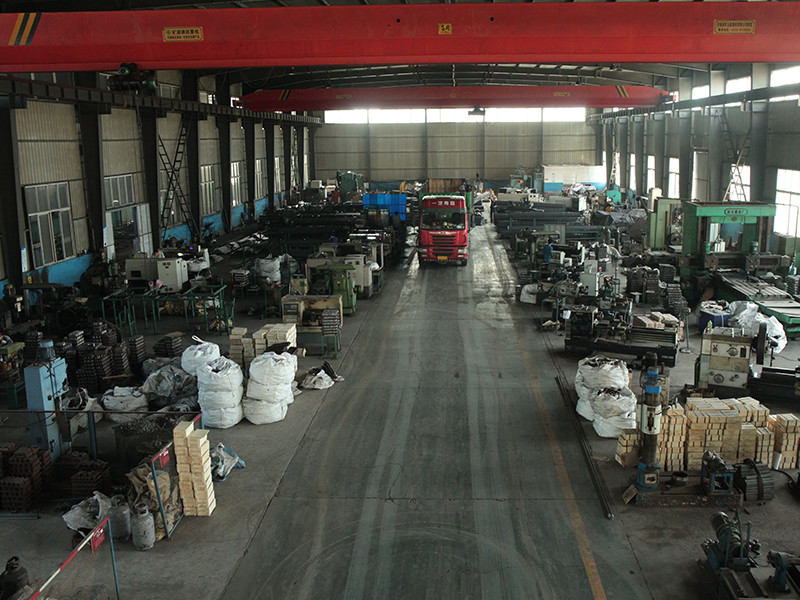

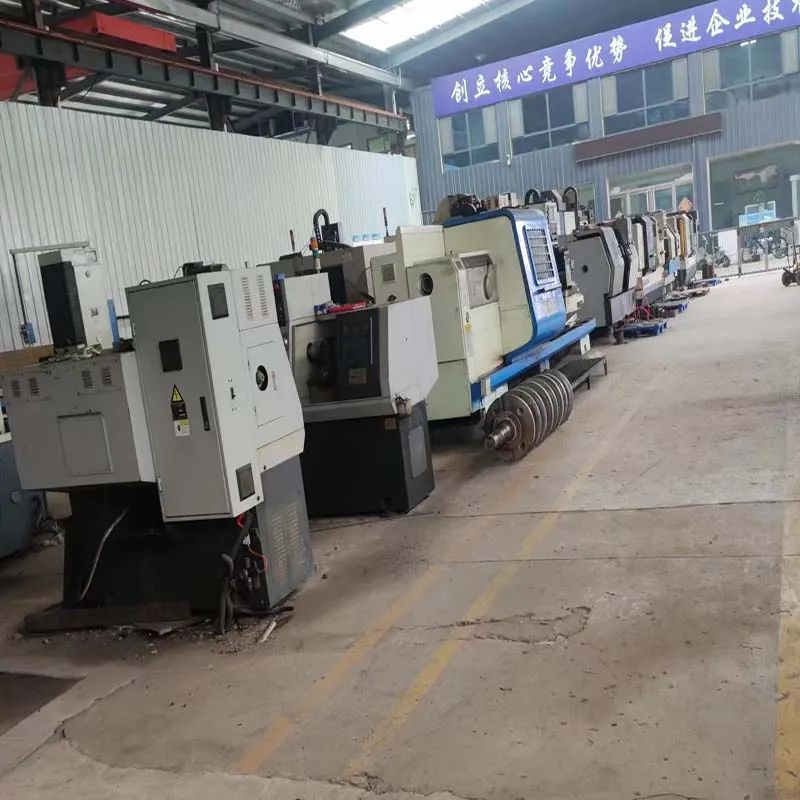

Workshop

Certificate display
